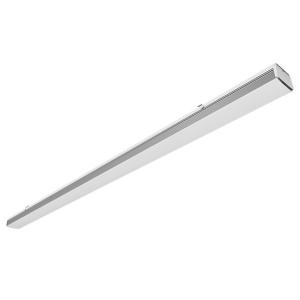

Good performance long lifetime of 50,000hrs neutral white 4,000K - Warm white LED Linear Trunking system
Plug and play internal electrical connectors
Lens design and PC cover design
Har monice Distribution value<20% for the driver
Tool-free for Installation
SDCM<3
Choose between 5, 7 or 11 core trunking systems
Features:
Datasheet:
| Model No. | Length | Driver | Power | LM/W | Lumen | Function |
| RE-RIP5S-60-S1 | 1438mm | OSRAM | 60-50-42-32W by Switch | 150lm/w | MAX 8,700 | Non-Dimming |
| RE-RIP5S-60-T1 | 1438mm | Tridonic | 60-55-50-45-42W by Resistor | 150LM/W | MAX 8,700 | Non-Dimming |
| RE-RIP5P-68-T1 | 1438mm | Tridonic | 16W to 68W | 170LM/W | MAX 11,000 | Non-Dimming |
| RE-RIP5S-72-A3 | 1438mm | AGT | 72-68-64-60W by switch | 130LM/W | MAX 9,000 | 1-10V |
| RE-RIP5S-68-T4 | 1438mm | Tridonic | 16W to 68W | 150LM/W | MAX 9,600 | DALI |
Dimension(mm):
Package:
Application:
LED Linear Light are often used to commercial lighting and industry lighting. With the advanced LED technology, LED Linear Light are perfect replacement for their fluorescent counterparts at the following applications.
- car parks
- garages
- utility rooms
- subway
- hospitals
- factories, offices, workshops, warehouses
- train stations
- toilets
- indoor stadium
FAQ:
1. Where is your factory located located? How can I visit here?
ShenZhen Recolux Lighting Co., LTD
Address: 2F, BaoZi Road #57,Kengzi, Pingshan, Shenzhen, P.R.C. All our clients, from home or abroad, are warmly welcome to visit us!
2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
3.Do you know “dali “?
A: Digital addressable lighting interface (DALI) is a trademark for network-based systems that control lighting in building automation.
4. How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
5. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
